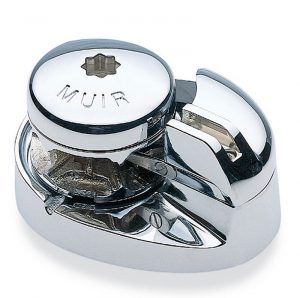

The Storm Stainless Steel Range from Muir epitomises the latest in anchor windlass technology.
Designed for vessels up to 25m (85ft), and in low profile and capstan configurations, they offer fast powered retrieval, smooth rope chain combination operation, reduced installation time, style and unbeatable reliability. Manufactured from polished stainless steel components the Storm Windlass will weather the harshest of conditions.
Storm Windlasses represent the pinnacle of reliability and performance and are packed with the features and quality you have come to expect from Muir. Designed on the principals of the award-winning Atlantic series with all its features and more.
The range is backed by a three year warranty and supported by an extensive world-wide sales and service network.
|
Version
|
VR/VRC 2200
|
|---|---|
|
Vessel length
|
12-15m (38-48ft)
|
|
Voltage
|
12/24v
|
|
Motor Wattage
|
1200w
|
|
Hydraulic Pressure
|
10MPa (1450psi)
|
|
Hydraulic Flow
|
15 litres/min (4 gal/min)
|
|
Max load
|
1000kg (2200 lb)
|
|
Work Load
|
125kg (275 lb)
|
|
Amps Work Load
|
120/75
|
|
Max Line Speed
|
15m/min (50ft/min)
|
|
Chain Size
|
6-8-10mm (1/4″ – 5/16″ – 3/8″)
|
|
Rope Size
|
12-14-16mm (1/2″ – 9/16″ – 5/8″)
|
|
Net Weight
|
DC VR 23.5kg (52 lb) – DC VRC 25kg (55 lb)
HYD VR 22.5kg (50 lb) – HYD VRC 24kg (53 lb)
|
|
Finish
|
316 Stainless Steel
|
|
Standard Equipment
|
RCMS, Footswitch, Handle
|
|
Manual Override System
|
Optional
|
