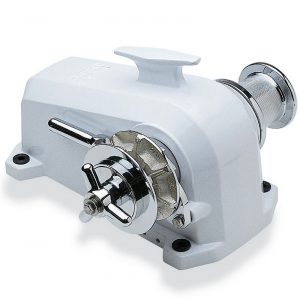

The powerful Compact range of horizontal windlasses provides the perfect alternative to vertical models for all recreational, commercial and fishing vessels up to 25 metres.
The Compact series of horizontal windlasses are ideal for installations where chain locker space is at a premium or not easily accessible. These complete above deck units are constructed from durable marine alloy or new low-maintenance composite housings enclosing the powerful and heavy duty motor and gearbox, waterproofing and protecting it from the harsh elements.
All running gear is designed for durability and performance, manufactured from marine grade bronze with luxury chrome or optional traditional polished bronze finish.
|
Version
|
HR1600
|
|---|---|
|
Vessel length
|
9-13m (29-42ft)
|
|
Voltage
|
12/24v
|
|
Motor Wattage
|
1000w
|
|
Hydraulic Pressure
|
N/A
|
|
Hydraulic Flow
|
N/A
|
|
Max load
|
545kg (1200 lb)
|
|
Work Load
|
125kg (275 lb)
|
|
Amps Work Load
|
10/60
|
|
Max Line Speed
|
14.5m/min (46ft/min)
|
|
Chain Size
|
6-8-10mm (1/4″ – 3/8″ – 1/2″)
|
|
Rope Size
|
12-14-16mm (1/2″ – 9/16″ – 5/8″)
|
|
Net Weight
|
DC 25kg (55 lb) – DC HYD 24kg (53 lb)
|
|
Finish
|
316 Stainless Steel
|
|
Standard Equipment
|
RCMS, Footswitch, Handle
|
|
Manual Override System
|
Optional
|
