Monitor Marine products are available in a variety of finishes – please click here for more information.

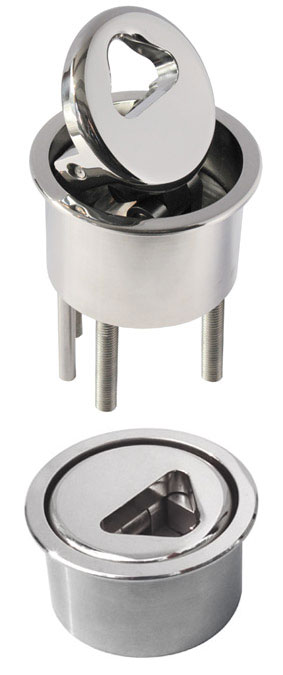

4 Bar Helicopter Tie-Down
Part No.
7516-SY
The 4 Bar is the most compact tie down of the range. It rotates through 360 degrees, tracking the direction of load, for tie down alignment. Folds flush to deck when not in use. ‘Bolt in’ format, includes integral drain and high polish finish as standard. As well as helicopters, it can be used for various other tie down applications.
Weight: 2.5kg approx.
| 4-Bar | |
| Max Loading | 8.75 tonnes |
|---|---|
| Weight | 2.5kg |
| DIA | 95mm |
| SWL* | 17kN (1.75 tonnes) |
| Factor of Safety* | 5:1 |
*Factor of Safety and Safe Working Load figures are calculated on a 45 degree line of pull.
NEW!! Version available for installation into concrete surfaces
Part No.
8156-CA

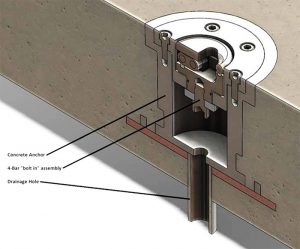

4 Bar Helicopter Tie-Down for installation into concrete surfaces. The stainless steel housing is set into the concrete and the Connector screwed in to the housing to make it completely flush with surrounding surface.
Please see bottom of page for links to technical drawing, or contact us for more information.

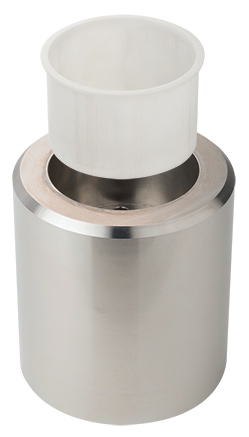

Deck Housing for 4 Bar Helicopter Tie Down
Part No. 21975
A Deck Housing for the 4 Bar Helicopter Tie-Down is available in 316 stainless steel, and is supplied complete with acetal cup for steel or aluminium deck installation. (Aluminium versions also available)
Weight: 7kg
Dimensions:
Diameter – 130mm
Depth – 145mm
